PDPasarJaya FS Prelim Deck

Why this program matters SDG alignment · 25-year footprint

Aligned with UN Sustainable Development Goals

Four SDG pillars are advanced directly by this program

7 Affordable & Clean Energy ≈345,000 MMBtu/y of pipeline-grade renewable gas displacing fossil fuel.

11 Sustainable Cities & Communities Diverts ~115,000 t/y of organic market waste from Bantar Gebang landfill.

12 Responsible Consumption & Production Closes the loop: market organics → energy + digestate fertiliser.

13 Climate Action Captures methane that would otherwise vent from open landfilling.
↓ Over 25 years:
~550,000 t CO₂ avoided
6.6M L diesel saved
(≈ 120,000 cars off road 1 year)

Targets: SDG 7.2 · 11.6 · 12.3 / 12.5 · 13.2. Quantified outcomes anchored to Top-48 PD Pasar Jaya markets, 350 TPD plant, 25-year concession.

25-year waste footprint

≈3.6 million tonnes of organic waste — at scale

Conceptual rendering of 25 years of organic market waste — a mountain ~750 m tall with a single human figure at the base for scale.

3.6M t

Cumulative organics
over 25 years

~750 m

Equivalent pile
height (loose-packed)

315 TPD

Daily throughput
diverted to AD

Private & Confidential · Not For Distribution

How it works · what it saves MRF sorting · AD components · bio-methane

Waste-to-Energy facility — process flow

MSW delivery → MRF → AD components with leachate treatment

Installation Coverage: MSW delivery to site, Material Recovery Facility, Pre-Treatment, Anaerobic Digester, Methane Upgrading, and Leachate Treatment Plant process flow diagram

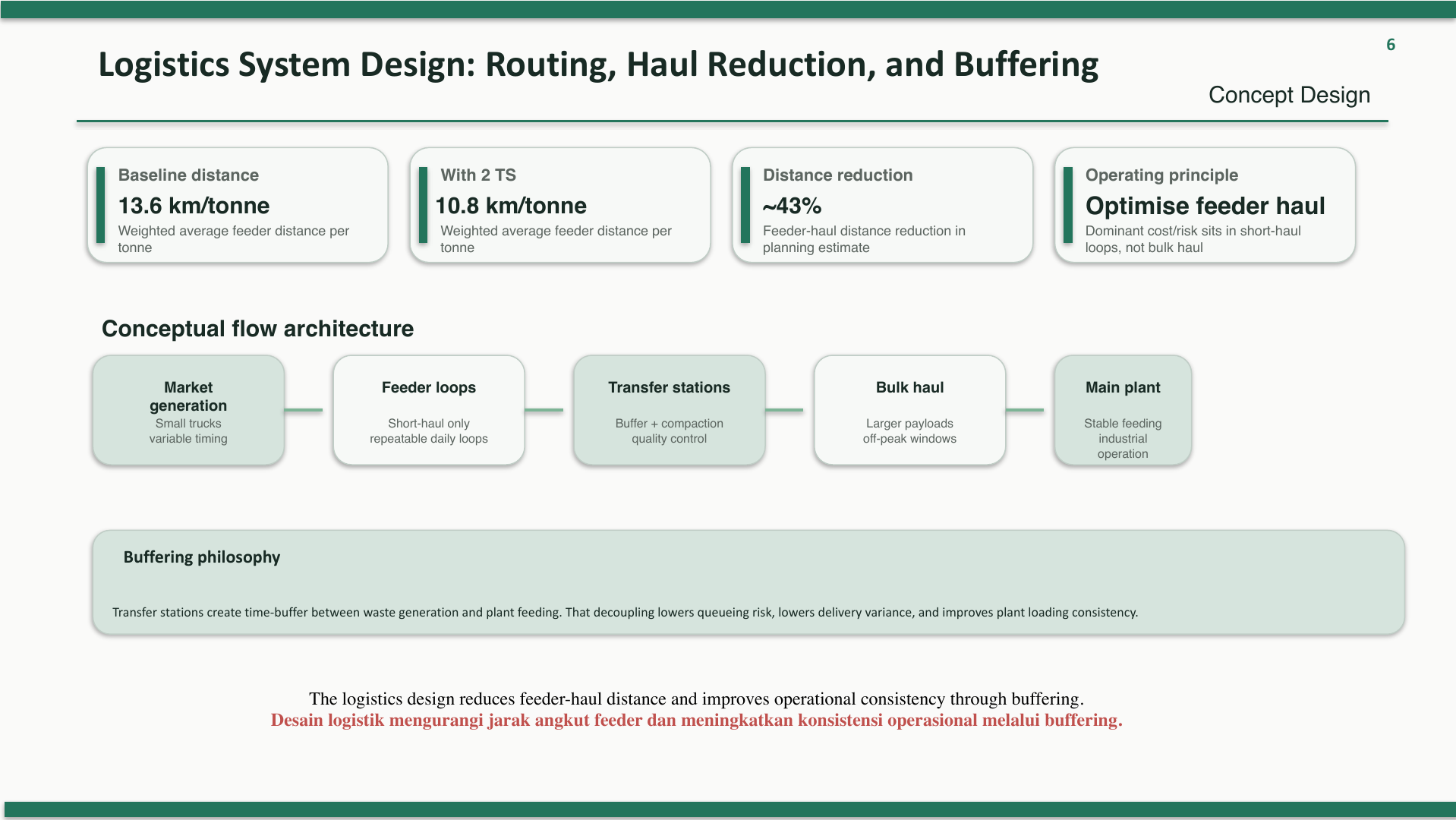

Transport footprint — direct vs. hub-and-spoke

Same tonnage, ~43% fewer truck-kilometres

Today (no TS)

Direct haul to Bantar Gebang

18.4 km / tonne (weighted)

Annual truck-km≈2.12 M

Annual diesel≈605 kL

25-yr diesel≈15.1 M L

With 2 TS + AD

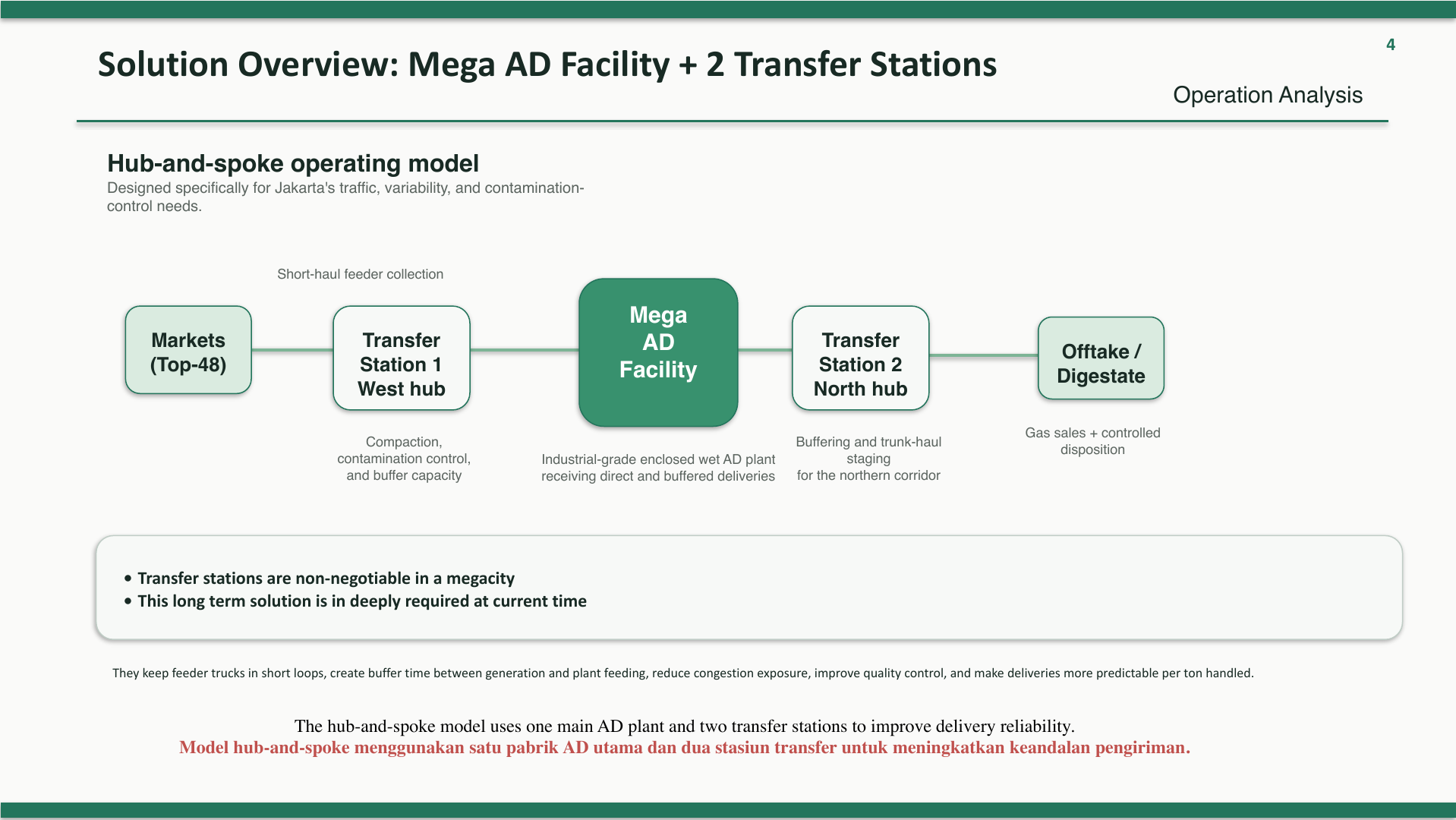

Hub-and-spoke logistics

10.4 km / tonne (weighted)

Annual truck-km≈1.20 M

Annual diesel≈342 kL

25-yr diesel≈8.6 M L

Reduction in feeder distance per tonne −43%

Direct

18.4 km/t

Hub & Spoke

10.4 km/t

MSW is sorted through MRF, with organic fraction and leachate processed through AD, methane upgrading, and leachate treatment.

MSW dipilah melalui MRF, lalu fraksi organik dan lindi diproses melalui AD, peningkatan metana, dan pengolahan lindi.
